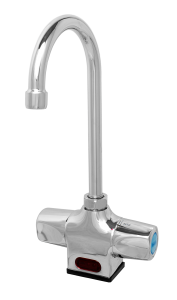

4000C Series

 The 4000C Series faucet is a single-hole deck mount, piston operated sensory faucet that provides a vandal resistant, no touch solution with hot/cold mixing and manual on/off adjustments that promotes better hygiene and energy savings.Using Hydrotek’s patented design, the 4000C Series faucet is ideal in clinics, hospitals, and manufacturing facilities for scrub stations.

  • ADA Compliant. Meets all barrier free codes
  • Conserves water and energy
  • Easily installed in new or retrofit applications
  • Competitively priced for today’s commercial market
  • Promotes cleanliness & hygiene
  • Proven Hydrotek craftsmanship and reliability

  • ACCU-SENSE adjustable sensor eyes.
  • Chrome plated, solid brass construction.
  • Wall mountable, waterproof control box with armored, vandal resistant control and power cables.
  • Preset/adjustable sensor ranges 6″ – 30″ for various installation requirements.
  • Standard automatic time-out feature. Preset at 0 and adjustable to 15, 30, 60 seconds. Prevents accidental sink overflow.
  • Shut-off delay is adjustable from 1 second (preset) to 8 seconds.
  • Includes in-line filter with clean-out trap to reduce maintenance costs.
  • Same faucet is field switchable to/from AC powered or battery powered.
  • Manual override provides continuous water flow for special applications or in case of power failure.
  • Manually controlled temperature adjustment.
  • Patented electronics and slow closing solenoid valve provide reliable and smooth operation without water hammer.
  • Superior VSI silicone elastomer piston seals are unaffected by chlorine, chloromines or ammonia.
  • Standard 2.0 GPM or 0.5 GPM Laminar Flow Control.
  • Control module allows a unique self-check of all electrical components.

H-4000C AC Powered, mixing, Automatic Gooseneck Faucet with Temperature Control & Manual Override:

Single-hole deck mount, mixing, automatic gooseneck faucet with chrome plated, solid brass construction with built-in temperature control and manual override. Includes faucet/sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 6” gooseneck spout with 2.0 GPM Laminar Flow Control, 6V DC slow closing solenoid valve, plug-in power adapter with armored/vandal resistant output cable, two (2) 3/8” braided S.S. supply lines, two (2) in-line filter/check valves with two (2) 3/8” compression adapters and mounting hardware. Faucet unit is field convertible to battery operation with addition of optional battery holder and four (4) AA batteries. Features include: ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range, preset/adjustable time-out feature (preset at 0 seconds and adjustable to 15, 30, or 60 seconds), preset/adjustable shut-off delay (preset at 1 second and adjustable up to 8 seconds).

H-4000C-SD (Scrub Sink Version – Deck Mount) AC Powered, Mixing Automatic Gooseneck Faucet with Temperature Control and Manual Override:

Single-hole deck mount, mixing, automatic gooseneck faucet with chrome plated, solid brass construction with built-in temperature control and manual override. Includes faucet/sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 8” deep gooseneck spout with 2.5 GPM Rose Spray Head, wrist blade handle, 6V DC slow closing solenoid valve, plug-in power adapter with armored/vandal resistant output cable, two (2) 3/8” braided S.S. supply lines, two (2) in-line filter/check valves with two (2) 3/8” compression adapters and mounting hardware. Faucet unit is field convertible to battery operation with addition of optional battery holder and four (4) AA batteries. Features include: ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range, preset/adjustable time-out feature (preset at 0 seconds and adjustable to 15, 30, or 60 seconds), preset/adjustable shut-off delay (preset at 1 second and adjustable up to 8 seconds).

HB-4000C Battery Operated, Mixing, Automatic Gooseneck Faucet with Temperature Control & Manual Override:

Single-hole deck mount, mixing, automatic gooseneck faucet with chrome plated, solid brass construction with built-in temperature control and manual override. Includes faucet/sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 6” gooseneck spout with 2.0 GPM Laminar Flow Control, 6V DC slow closing solenoid valve, battery holder with four (4) AA batteries, two (2) 3/8” braided S.S. supply lines, two (2) in-line filter/check valves with two (2) 3/8” compression adapters and mounting hardware. Faucet is field convertible to AC powered operation with addition of optional Plug-in Power Adapter.  Features include: ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range, preset/adjustable time-out feature (preset at 0 seconds and adjustable to 15, 30, or 60 seconds), preset/adjustable shut-off delay (preset at 1 second and adjustable up to 8 seconds).

HB-4000C-SD (Scrub Sink Version – Deck Mount) Battery Operated, Mixing, Automatic Gooseneck Faucet with Temperature Control and Manual Override:

Single-hole deck mount, mixing, automatic gooseneck faucet with chrome plated, solid brass construction with built-in temperature control and manual override. Includes faucet/sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 8” deep gooseneck spout with 2.5 GPM Rose Spray Head, wrist blade handle, 6V DC slow closing solenoid valve, battery holder with four (4) AA batteries, two (2) 3/8” braided S.S. supply lines, two (2) in-line filter/check valves with two (2) 3/8” compression adapters and mounting hardware. Faucet is field convertible to AC powered operation with addition of optional Plug-in Power Adapter. Features include: ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range, preset/adjustable time-out feature (preset at 0 seconds and adjustable to 15, 30, or 60 seconds), preset/adjustable shut-off delay (preset at 1 second and adjustable up to 8 seconds).

This model is offered in the following options and list prices:

AC POWERED

H-4000C Gooseneck Faucet, Mixing & Manual On/Off $576.36
H-4000C-SD Gooseneck Faucet, Mixing & Manual On/Off (Scrub Sink Version) $664.44
H-4000C-DC Gooseneck Faucet, Mixing & Manual On/Off, w/ DC Backup $606.36
H-4000C-SD-DC Gooseneck Faucet, w/ DC Backup (Scrub Sink Version) $694.44
H-4000C-LR Low Lead Gooseneck Faucet, Mixing & Manual On/Off $622.47
H-4000C-SD-LR Low Lead Gooseneck Faucet (Scrub Sink Version) $717.60
H-4000C-LRDC Low Lead Gooseneck Faucet, Mixing & Manual On/Off, w/ DC Backup $652.47
H-4000C-SD-LRDC Low Lead Gooseneck Faucet, w/ DC Backup (Scrub Sink Version) $747.60

BATTERY POWERED

HB-4000C Gooseneck Faucet, Mixing & Manual On/Off $576.36
HB-4000C-SD Gooseneck Faucet, Mixing & Manual On/Off (Scrub Sink Version) $664.44
HB-4000C-LR Low Lead Gooseneck Faucet, Mixing & Manual On/Off $622.47
HB-4000C-SD-LR Low Lead Gooseneck Faucet (Scrub Sink Version) $717.60

The following accessories are available for this model:
HC-006H 4″ Cover Plate w/ Mounting Kit (H/HB-3000C, 4000C, 4000C-SD) $27.26
HC-006J 8″ Cover Plate w/ Mounting Kit (H/HB-3000C, 4000C, 4000C-SD) $41.67
HC-007A 6″ Gooseneck Spout w/ 2.0 GPM Laminar Flow Control $41.78
HC-007E 6″ 45-degree Swing Gooseneck Spout w/ 2.0 Laminar Flow Control $32.53
HC-007F 8″ 45-degree Swing Gooseneck Spout w/ 2.0 Laminar Flow Control $39.79
HC-007G 8″ Gooseneck Spout w/ 2.0 GPM Laminar Flow Control $52.68
HC-009A In-Line Filter/Check Valve (H/HB-3000, 4000; 3000C, 4000C) $43.86
HC-010 Multi-Unit Power Adapter (8 units total) $85.00
HC-0104 Multi-Unit Power Adapter (4 units total) $60.79
HC-078 “O” Ring Kit, Temperature Adjuster Rod Assembly $14.33
HCB-017B Solenoid Valve Repair Kit (HB-3000, 4000) $27.95
HCC-005-04A
 Piston Set $11.75
HCC-008B 12V DC Plug-In Adapter (C-Series) $41.34
HCC-011A Control Module (H-1000C, 2603C, 3000C, 4000C, 6000C, 6700C) *Specify model* $167.71
HCC-011B Control Module (HB-1000C, 2603C, 3000C, 4000C, 6000C, 6700C) *Specify model* $167.71
HCC-019 Coil Module (for HCC-005 Solenoid Valve) $120.27
HCC-032 Sensor Eyes and Cable (H/HB-3000C, 4000C) $79.73
HCC-103A Battery Holder Only (for C-Series Faucets) $7.59
